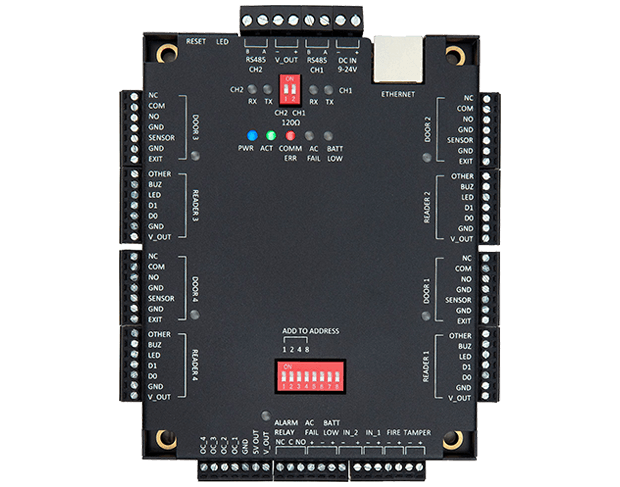

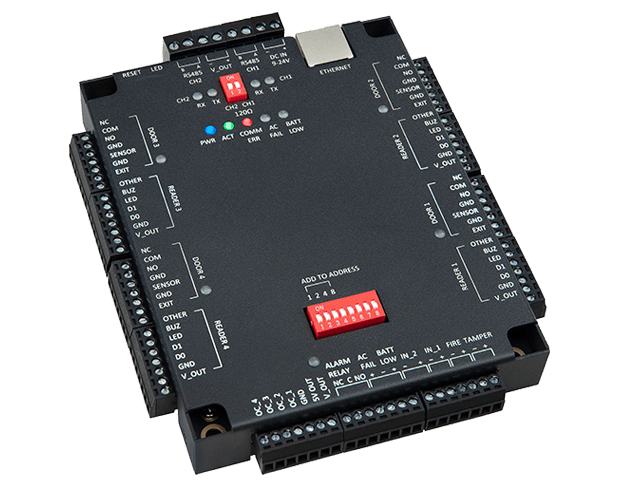

SEMAC-CP-402

OSDP Secure and Flexible Access Control Panel
OSDP Secure and Flexible Access Control Panel

OSDP Secure and Flexible Access Control Panel

Features

SEMAC-CP-402 is a high-performance IP-based access control panel that delivers secure, flexible, and scalable solutions for modern access control systems. With advanced encryption, OSDP support, and cloud-ready capabilities, it empowers businesses to build intelligent and future-ready security infrastructures.

  • Cardholder Capacity: 200,000 users
  • Access Log Capacity: 500,000 log records
  • I/O Expansion: up to 512 digital inputs and 512 digital outputs
  • Built-in Reader: Up to 8 OSDP readers / 4 Wiegand readers
  • Expandable up to 128 OSDP readers / 64 Wiegand readers
  • IPv4, TLS 1.2 / 1.3, AES-128/256 encryption, and HTTPS secure communication

SECURE
Advanced AES-256 / TLS 1.3 / HTTPS encryption safeguards your data and communications.

FLEXIBLE
Multiple configuration options and I/O support adapt to various application needs.

SCALABLE
Cloud-ready architecture and OSDP compatibility support future expansion.

Products Specification

GENERAL DATA

Door Capacity: 4
OSDP/ WG Readers: 8/ 4
OSDP channel: V1/ V2
Wiegand: 26/ 34/ 66 bits
Door Expansion (DCM): 64 doors/ 128 readers
Exit Button: 4
Door Lock Relay: 4
Door Sensor: 4
Aux. Input: 6
Aux. Output: 1 relay & 4 OC
Fire Alarm Input: YES
LED Indication: 5 LED
Processor: 32-bits
Card Capacity: 200,000
Access Log Capacity: 500,000
System Log Capacity: 10,000
TCP/IP Interface (10/100M base): YES
Encryption: AES-128/256 / TLS 1.2/1.3 / HTTPS
Software System: SOMAC
Extra Event Outputs: CSS-X20 (16 relays)/ Max 32 pcs (512 relays)
Extra Event Inputs: CSS-X10 (16 inputs)/ Max 32 pcs (512 inputs)
Warranty (Years): 3

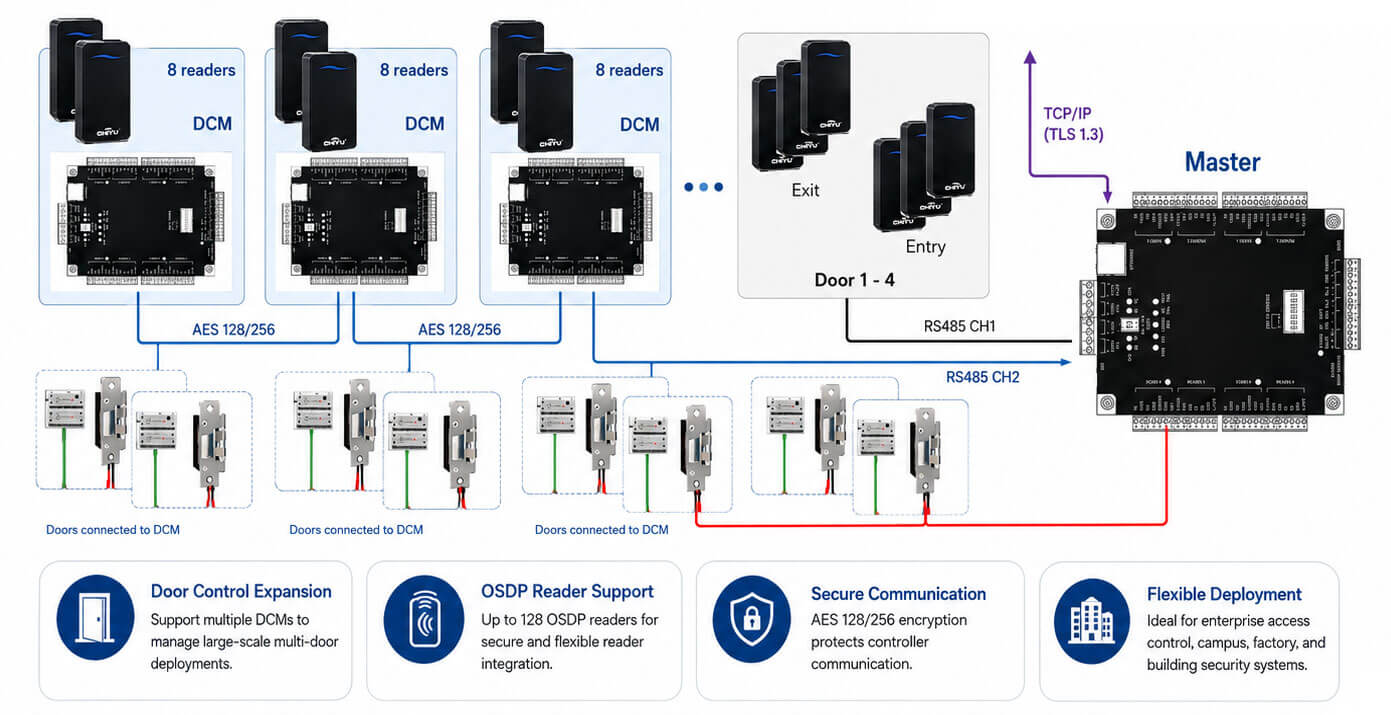

Structure

SEMAC-CP-402
SEMAC-CP-402
Ordering information
SEMAC-EP enclosure
CSS-X10 digital input extension
CSS-X20 digital output extension
