CSS-V15K

CSS-V15K
CSS-V15K
Features

CSS-V15K is a highly cost-effective face recognition access control attendance system, offering an ideal solution for businesses seeking high performance within a smaller user capacity. Combining a user-friendly interface with advanced security, it delivers a reliable and efficient access control experience, making it the perfect budget-friendly choice for the market.

  • Live Face Detection (LFD)
  • Dual Camera Fast Recognition
  • Defies direct sunlight, delivering flawless recognition.
  • Mask detection for touchless solution
  • Support for Time Server Synchronization
  • PUSH methodology for real-time LOGs data
  • Snapshot Image Log for attendance & events
  • Access Control and Time & Attendance combined
  • Built-In Web Server for easy browser management
  • Near-infrared LED according to surrounding brightness
  • Sleek and efficient design with User-Friendly 4.3” Touch Screen
Products Specification

GENERAL DATA

Software Application: SoMac/ Browser
Dual CPU: ARM M4 32bit 180MHz and Quad-core ARM Cortex-A7 32bit 1.5Ghz, NPU (upto 2TOPS)
Memory: 32 MB SDARM/8 GB Flash
Verification Mode: FACE/ PIN/ Card
Proximity: EM/ Mifare/ Desfire/ Mobile NFC&BLE
Face Capacity: 10,000
Card Capacity: 100,000
Max. User Capacity: 100,000
Access Transaction Log: 100,000
System Log: 10,000
Snapshot Log: 5,000 Images
Web Base Management: Yes
On-Board Reader Support: 1 OSDP V1/V2 or 1 Wiegand readers
Accuracy: FRR 1% @ FAR 0.000001% (1/100,000,000)
1:N Face Recognition Speed: < 450ms (less than 300ms @10,000)
Access Levels (Time Sets/ Time Zones/ Group): 255 per reader schedule (255/ 120/ 255 SET)
Holiday Schedule Set: 100
Inputs: 3 inputs, Exit Button/ Door Sensor/ Fire Alarm
Outputs: 2 relays, 30VDC 2A, Form C with dry contacts: Door Lock relay x 1, Event Alarm relay x 1
Tamper: Yes
Live Face Detection (Anti-Spoofing): Yes
Face Scan Distance: 30cm - 1.3M

COMMUNICATION

10/100 Base-T TCP/IP: Yes (Static IP/Auto IP (DHCP Client)
RS485: Yes
Wiegand: 1 channel IN or OUT
USB: USB 2.0 host

INDICATION DATA & USER INTERFACE

Audible Speaker: 16 bits mono
Camera System: Dual Camera (RGB + IR)
FOV (Field of View): Vertical viewing angle of 65°
LED: Multi-Color
LCD: 4.3 inches touch
Capacitive Touch Keys: 4

ELECTRICAL DATA & CONDITIONS

Operation Voltage: 12V DC/ 1.5A
Operation Temperature: 0°C - 50°C
Operation Humidity: 10% - 80%RH

PHYSICAL DATA

Dimensions: 122.5 x 185 x 75.3 mm
Weight: 645 g
Installation: Indoor

INTERNATIONAL STANDARDS & WARRANTY

CE, FCC, ROHS: Yes
Warranty: 1 Year

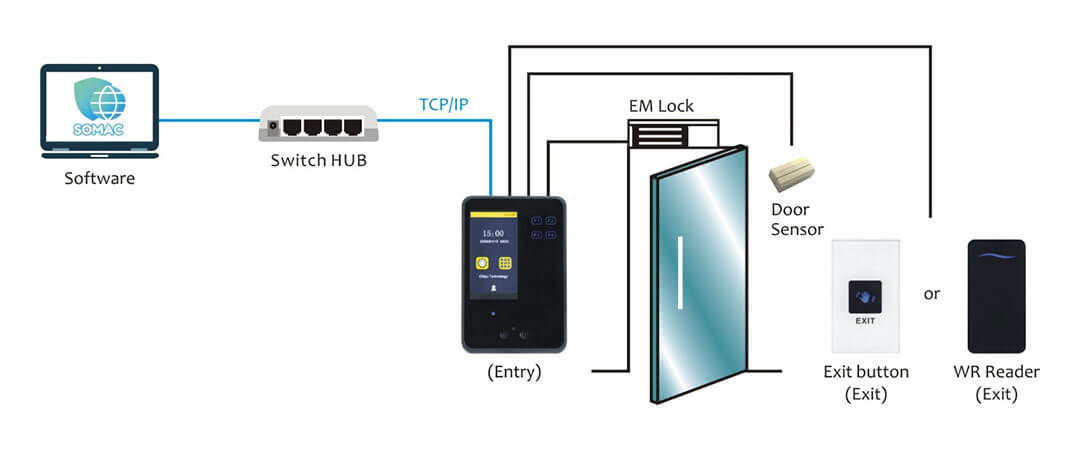

Structure

CSS-V15K
Ordering information
E: EM 125KHz
M: Mifare/ Desfire 13.56MHz
DNB: Desfire/ NFC/ BLE
